HEX ezCAN II Accessory Manager - R1200 & R1250 Liquid Cooled Models

2

| Write a Review

Ratings Snapshot

5.0

out of 5

5 (2)

4 (0)

3 (0)

2 (0)

1 (0)

Code: EZCAN-LCGEN2

Price: $229.00

Description

Instructions

Applications

Reviews

These products have the latest March 2021 technical updates which improve durability! To clear up any confusion, there is no “Gen 3”. The latest improvements were incorporated into the existing Gen 2 version in March 2021.

The new generation of HEX ezCAN - an accessory manager for motorcycles which enables you to seamlessly add various aftermarket accessories such as additional lights, air horns, GPS, heated jacket and a phone charger with ease and without cutting any wires or voiding your warranty.

Customize your bike and make it safer to ride.

For Models supported, see Applications Tab (above).

Key Features

One device manages everything
Integrates additional safety features
Does not void warranty
Plugs directly into CAN-Bus (saves installation time and wiring complexity)
Unobtrusive - fits perfectly under the seat
Easy configuration of software via USB (Mac and Windows PC)
Four individually electronically fused channels
Waterproof and dust-proof

Specifications and Components:

Waterproof micro USB connector
Battery connection and fuse
Two CAN-Bus connectors
Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
Weight 358 g (12 oz)
Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")

Easy Installation:

Download and install the HEX ezCAN software

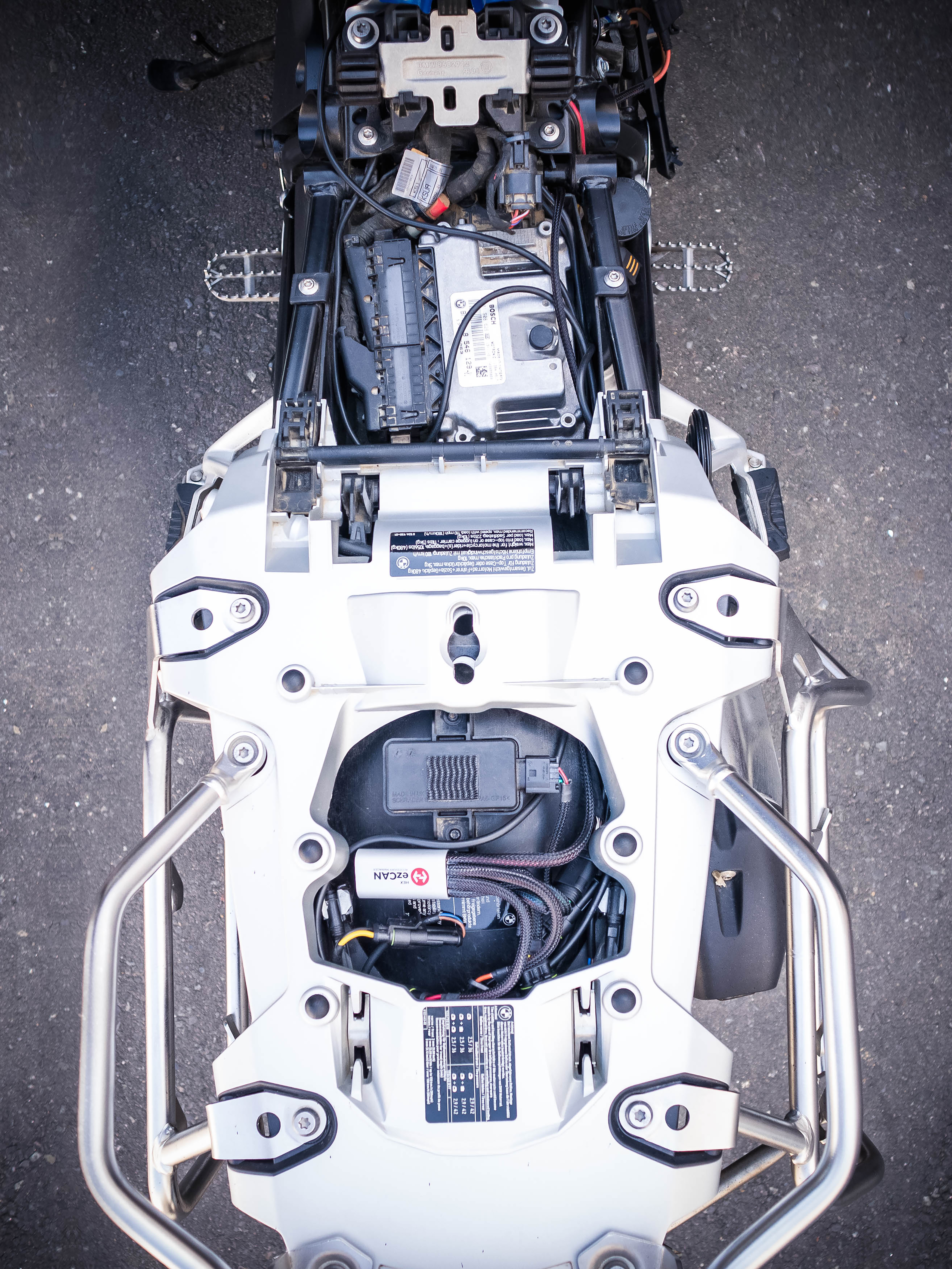

Install the ezCAN under the seat (Velcro included)
Route and connect the ezCAN battery cables
Plug the ezCAN into the motorcycle CAN-Bus
Plug accessories into the ezCAN
Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

Software:

The HEX ezCAN software is available for both Mac and Windows PC and is used via a micro USB cable, which is included in the package.

Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customize the behavior of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.

Contents of Package:

1 x ezCAN Device
1 x Micro USB Cable
2 x Velcro Strips
2 x Blanking Plugs
4 x Cable Ties
4 x Two-wire stub connectors (Orange)
4 x Terminal wires (Orange)
4 x Blanking seals
1 x Extra micro USB Dust Covers

Video Instructions for the BMW R1200/1250 Liquid Cooled Series:

R1200GSAdv-K51
R1200RTLC-K52
R1200RSLC-K54
R1200RLC-K53
R1250GS-K50
R1250RT-K52

Mapping the power output channels (Gen II ezCAN):

Understanding circuit configurations (Gen II ezCAN):

Locate your bike's battery, DWA connector and horn input:

This device works on the following BMW models:

R1200GS-LC
R1200GSA-LC
R1200R-LC
R1200RS-LC
R1200RT-LC
R1250GS
R1250GSA
R1250R
R1250RS
R1250RT
